Please note: The end port has changed to a newer version not shown on the photo.
This Short Modular Still Head is suitable for the production of high-flavour Spirits and will fit onto any suitable 2” or 4” Boilers or Kegs. Simply remove the 4” to 2” reducer and the system can be mounted using a 2” Tri-Clover Fitting.
This Stainless Steel Short Modular Still Head is manufactured from high quality 316 and 304 Stainless Steel.
The Short Modular Still Head Includes:
Extension Pipe:
1 x 2” Extension Pipe – 500mm
Silicone Seals:
1 x 4” Silicone Seal
7 x 2” Silicone Tri-Clover Beaded Seals
Shotgun Condenser:
1 x 2” Tri-Clover Shotgun Condenser 3 Port (540mm) – provides fast and efficient cooling of the evaporated spirit.
Spirit Cup:
1 x 2” Stainless Steel Sprit Cup - 10mm outlet.
Temperature Port:
1 x Temperature Port including 2” Tri-Clover Fitting – can accommodate 4.7 – 6mm thermometer.
Tubing:
2m x 8mm Blue Polyurethane Tubing
2m x 8mm Yellow Polyurethane Tubing
Tri-Clover Clamps:
1 x 4” Tri-Clover Clamp
6 x 2” Tri-Clover Clamps
Tri-Clover Fittings:
1 x 4” to 2” Tri-Clover Concentric Reducer
1 x 2" Tri-Clover T-Piece
1 x 2" Tri-Clover Elbow
Quick Disconnects:
2 x 8mm Quick Disconnect – for Polyurethane Tubing.
Thermometer:
1 x Digital Pocket Thermometer – including LCD display and battery.
Optional Extras:
To view these products, please see the bottom of this screen under the heading "You May Also Like".
Gin Basket:
Tri-Clover Gin Basket - 240MM (MSTCGB2402)
Mesh Screen:

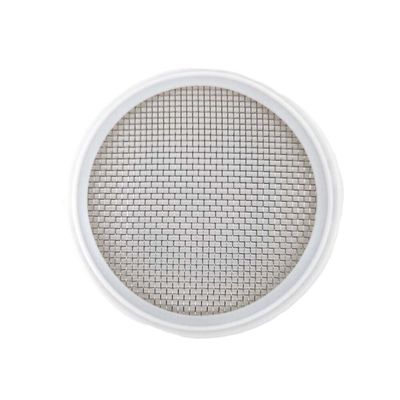

Tri-Clover Mesh Screen 2” – PTFE (KL11921)
Sight Glass:
2” Tri-Clover Sight Glass (KLTCSG2)
2” Tri-Clover Sight Glass (MTCSG2)
Orbit Spiral Prismatic Packing:
Orbit SPP Packing – Stainless Steel (MSOSPP1)
This packing will dramatically improves the efficiency of any still.
Copper Orbit SPP will be available soon. Check out our website for further information.
Reflux Condenser:
2” Tri-Clover Dephlegmator (Reflux Condenser) 3 Port –240mm (MTCD2402)
Extension Pipes:

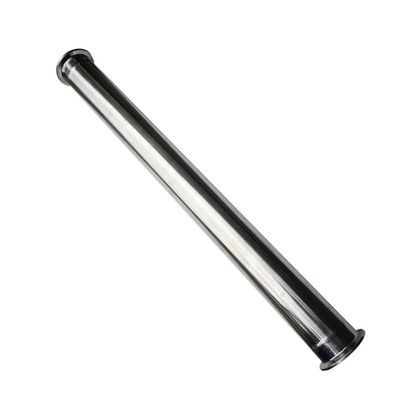

Stainless Steel 2” Extension Pipes –
260mm (KL10665)
540mm (MSTCET540)
1040mm (MSTCET1040)
PLEASE NOTE:
The Line-Arm can be adjusted to the Distillers setup, as it swivels in both directions.
The Digital Pocket Thermometer locks into the 2" Tri-Clover Temperature Port using a DOUBLE Silicone Seal – included in kit. The Digital Pocket Thermometer also comes standard with a 4.7 to 6mm Clamp Seal for PID Temperature Display and Control.
NO Water Pump is included in this kit.
Adequate cooling water must be supplied to the condenser/s.
Please ensure the suitability of your Boiler or Keg before ordering.
Additional components can be purchased separately to upgrade the Still Head at any point.
